AWS Network Load Balancer

AWS Network Load Balancer service is distributed in OSI Layer 4 (the network layer) traffic (TCP, UDP, TLS) and can handle over a million requests per second.

The Sumo Logic app for AWS Network Load Balancer is using metrics to provide insights to ensure that your network load-balancers are operating as expected, backend hosts are healthy, and to quickly identify errors.

Log and metric types

The Sumo Logic app for AWS Network Load Balancer uses the following logs and metrics:

Sample logs

Sample CloudTrail Log Message

{
  "eventVersion": "1.11",
  "userIdentity": {
    "type": "AssumedRole",
    "principalId": "AROATIK2E7SUFL6GB4G44:1782467664281479421",
    "arn": "arn:aws:sts::224064240808:assumed-role/pdet-eks-irsa-prod-aws-lb-controller/1782467664281479421",
    "accountId": "224064240808",
    "accessKeyId": "ASIATIK2E7SUH6GUXFK4",
    "sessionContext": {
      "sessionIssuer": {
        "type": "Role",
        "principalId": "AROATIK2E7SUFL6GB4G44",
        "arn": "arn:aws:iam::224064240808:role/pdet-eks-irsa-prod-aws-lb-controller",
        "accountId": "224064240808",
        "userName": "pdet-eks-irsa-prod-aws-lb-controller"
      },
      "webIdFederationData": {
        "federatedProvider": "arn:aws:iam::224064240808:oidc-provider/oidc.eks.us-west-2.amazonaws.com/id/0499F131BE8B24AAE70BF8AD8EB16D3A",
        "attributes": {}
      },
      "attributes": {
        "creationDate": "2026-06-26T09:54:24Z",
        "mfaAuthenticated": "false"
      }
    }
  },
  "eventTime": "2026-06-26T09:54:25Z",
  "eventSource": "elasticloadbalancing.amazonaws.com",
  "eventName": "DescribeLoadBalancers",
  "awsRegion": "us-west-2",
  "sourceIPAddress": "44.241.82.204",
  "userAgent": "aws-sdk-go-v2/1.36.3 ua/2.1 os/linux lang/go#1.24.5 md/GOOS#linux md/GOARCH#amd64 api/elasticloadbalancingv2#1.45.0 elbv2.k8s.aws/v2.13.4 m/C,E",
  "requestParameters": {
    "loadBalancerArns": [
      "arn:aws:elasticloadbalancing:us-west-2:224064240808:loadbalancer/net/k8s-gloosyst-gatewayp-9e3a2f18b7/262e2df5d81d69e3"
    ]
  },
  "responseElements": null,
  "requestID": "b231b530-2877-467d-9a0b-eb9b0fed0f39",
  "eventID": "7800ac19-806e-434e-b2b0-aec11ad7d312",
  "readOnly": true,
  "eventType": "AwsApiCall",
  "apiVersion": "2015-12-01",
  "managementEvent": true,
  "recipientAccountId": "224064240808",
  "eventCategory": "Management",
  "tlsDetails": {
    "tlsVersion": "TLSv1.3",
    "cipherSuite": "TLS_AES_128_GCM_SHA256",
    "clientProvidedHostHeader": "elasticloadbalancing.us-west-2.amazonaws.com"
  }
}

Sample queries

Active Flows (Connections) by Load Balancer (Metric-based)
account=* region=* LoadBalancer=* Namespace=aws/NetworkELB metric=ActiveFlowCount Statistic=Sum | sum by account, region, namespace, LoadBalancer

Successful Events Details
account=* region=* "\"eventsource\":\"elasticloadbalancing.amazonaws.com\"" "2015-12-01"
| json "userIdentity", "eventSource", "eventName", "awsRegion", "sourceIPAddress", "userAgent", "eventType", "recipientAccountId", "requestParameters", "responseElements", "requestID", "errorCode", "errorMessage", "apiVersion" as userIdentity, event_source, event_name, region, src_ip, user_agent, event_type, recipient_account_id, requestParameters, responseElements, request_id, error_code, error_message, api_version nodrop
| where event_source = "elasticloadbalancing.amazonaws.com" and api_version matches "2015-12-01"
| where namespace matches "aws/networkelb" or isEmpty(namespace)
| json field=userIdentity "accountId", "type", "arn", "userName"  as accountid, type, arn, username nodrop
| parse field=arn ":assumed-role/*" as user nodrop
| parse field=arn "arn:aws:iam::*:*" as accountid, user nodrop
| json field=requestParameters "name" as networkloadbalancer nodrop
| if (isBlank(accountid), recipient_account_id, accountid) as accountid
| where (tolowercase(networkloadbalancer) matches tolowercase("*")) or isBlank(networkloadbalancer)
| if (isEmpty(error_code), "Success", "Failure") as event_status
| where event_status= "Success"
| if (isEmpty(username), user, username) as user
| count as event_count by event_name
| sort by event_count, event_name asc

Collecting logs and metrics for AWS Network Load Balancer

Configure Hosted Collector

When you create an AWS Source, you'll need to identify the Hosted Collector you want to use or create a new Hosted Collector. Once you create an AWS Source, associate it with a Hosted Collector. For instructions, see Configure a Hosted Collector and Source.

Collect AWS Network Load Balancer CloudWatch metrics

Sumo Logic supports collecting metrics using one of the following source types:

Configure an AWS Kinesis Firehose for Metrics Source (recommended)
Configure an Amazon CloudWatch Source for Metrics

note
Namespace for AWS Network Load Balancer service is AWS/NetworkELB.

Follow the steps below to add custom metadata fields with your metrics:

Click +Add Field under Metadata. Each field consists of a name (key) and a corresponding value.
Create a field named account and assign it a value that represents a friendly name or alias to your AWS account from which metrics are collected. This value will appear in the AWS Observability view, and metrics can be queried using the account field.
After adding fields, check their status indicators:
- A green check mark indicates the field exists and is enabled in the Fields table schema.
- An orange exclamation icon indicates the field does not exist or is disabled in the schema.
  - You will have the option to automatically add or enable the field.
  - If a field is sent but not present or enabled in the schema, it is ignored and marked as Dropped.

Collect AWS Network Load Balancer CloudTrail logs

Prerequisites

Grant Sumo Logic access to an Amazon S3 bucket.
Create a trail for your AWS account.
Confirm that logs are being delivered to the Amazon S3 bucket.

note
Namespace for AWS Network Load Balancer service is AWS/NetworkELB.

Follow the steps below to collect logs for AWS Network Load Balancer (NLB):

Configure a CloudTrail Logs Source.
Add custom metadata fields with your logs:
1. Click +Add Field under Metadata. Each field consists of a name (key) and a corresponding value.
2. Create a field named account and assign it a value that represents a friendly name or alias to your AWS account from which logs are collected. This value will appear in the AWS Observability view, and logs can be queried using the account field.
3. After adding fields, check their status indicators:
  - A green check mark indicates the field exists and is enabled in the Fields table schema.
  - An orange exclamation icon indicates the field does not exist or is disabled in the schema.
    - You will have the option to automatically add or enable the field.
    - If a field is sent but not present or enabled in the schema, it is ignored and marked as Dropped.

Centralized AWS CloudTrail log collection

In case you have a centralized collection of CloudTrail logs and are ingesting them from all accounts into a single Sumo Logic CloudTrail log source, create the following Field Extraction Rule to map a proper AWS account(s) friendly name / alias. Create it if not already present / update it as required.

Rule Name: AWS Accounts
Applied at: Ingest Time
Scope (Specific Data): _sourceCategory=aws/observability/cloudtrail/logs

Parse Expression

Enter a parse expression to create an account field that maps to the alias you set for each sub account. For example, if you used the dev alias for an AWS account with ID 528560886094 and the prod alias for an AWS account with ID 567680881046, your parse expression would look like:

| json "recipientAccountId"
// Manually map your aws account id with the AWS account alias you setup earlier for individual child account
| "" as account
| if (recipientAccountId = "528560886094",  "dev", account) as account
| if (recipientAccountId = "567680881046",  "prod", account) as account
| fields account

Installing the AWS Network Load Balancer app

Now that you have set up a collection for AWS Network Load Balancer, install the Sumo Logic app to use the pre-configured dashboards that provide visibility into your environment for real-time analysis of overall usage.

To install the app, do the following:

note

Next-Gen App: To install or update the app, you must be an account administrator or a user with Manage Apps, Manage Monitors, Manage Fields, Manage Metric Rules, and Manage Collectors capabilities depending upon the different content types part of the app.

Select App Catalog.
In the 🔎 Search Apps field, run a search for your desired app, then select it.
Click Install App.
note
Sometimes this button says Add Integration.
Click Next in the Setup Data section.
In the Configure section of your respective app, complete the following fields.
1. Field Name. If you already have collectors and sources set up, select the configured metadata field name (eg _sourcecategory) or specify other custom metadata (eg: _collector) along with its metadata Field Value.
Click Next. You will be redirected to the Preview & Done section.

Post-installation

Once your app is installed, it will appear in your Installed Apps folder, and dashboard panels will start to fill automatically.

Each panel slowly fills with data matching the time range query received since the panel was created. Results will not immediately be available but will be updated with full graphs and charts over time.

As part of the app installation process, the following content will be created by default along with dashboards and monitor template:

Fields

account Name / alias to the AWS account.
accountid AWS account id.
region The region to which the resource name belongs to.
namespace Namespace for AWS Network Load Balancer Service is AWS/NetworkELB.
networkloadbalancer Network Load Balancer name.

Field Extraction Rule(s)

The FER AwsObservabilityNLBCloudTrailLogsFER to extract fields region, namespace, accountid, and networkloadbalancer will be created as a part of app installation.

Metric rule(s)

The Metric Rule AwsObservabilityNLBMetricsRule for the AWS/NetworkELB namespace will be created as a part of app installation.

Viewing AWS Network Load Balancer dashboards

All dashboards have a set of filters that you can apply to the entire dashboard. Use these filters to drill down and examine the data to a granular level.

You can change the time range for a dashboard or panel by selecting a predefined interval from a drop-down list, choosing a recently used time range, or specifying custom dates and times. Learn more.
If required, configure the refresh interval rate for a dashboard or panel by clicking the drop-down arrow next to the refresh icon.
Click the funnel icon in the dashboard top menu bar to filter the dashboard with template variables.

Overview

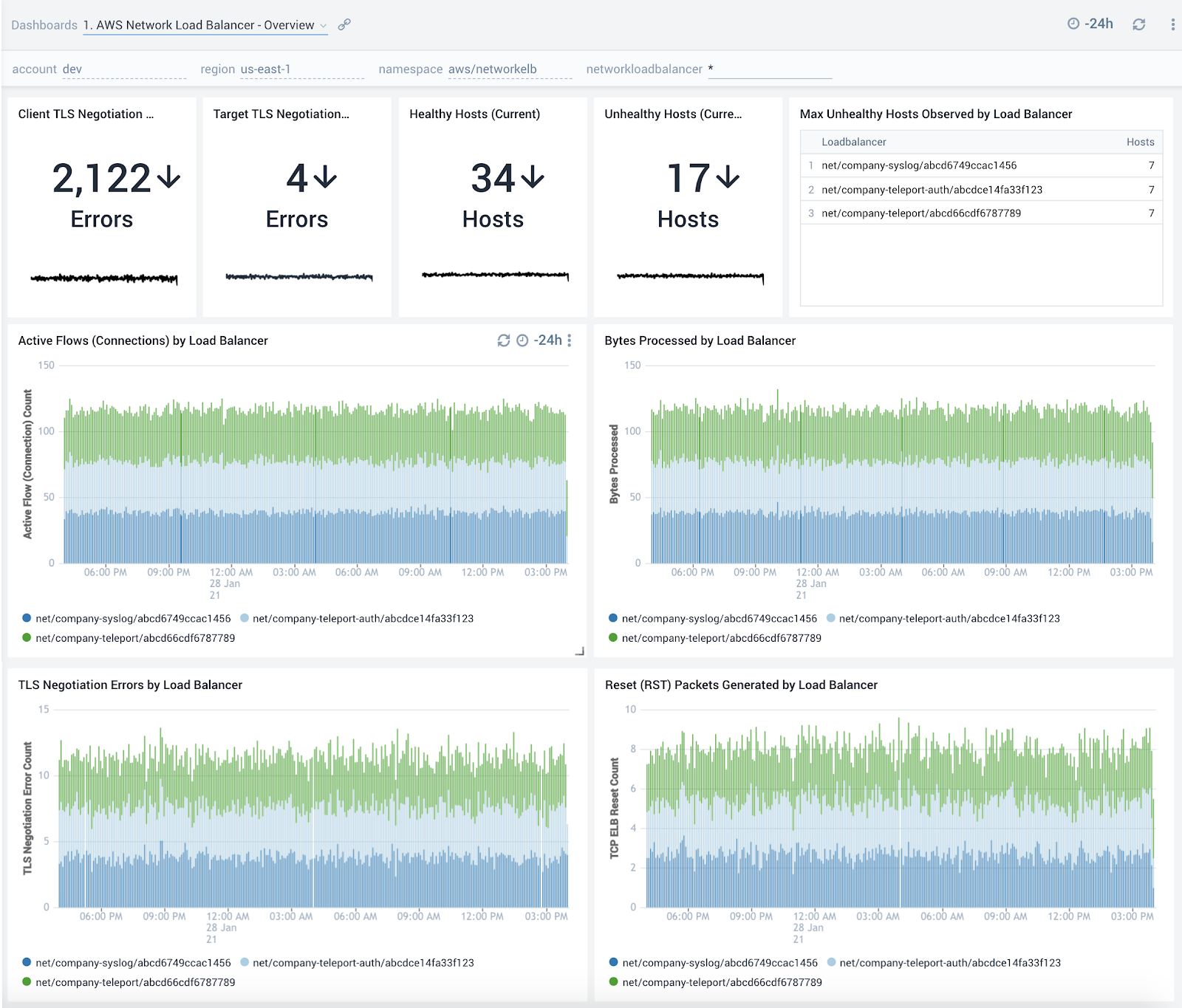

The AWS Network Load Balancer - Overview dashboard provides detailed insights into a view of network utilization and performance. The dashboard provides information about the errors, health, and traffic handled by the load balancer.

Use this dashboard to:

Get an at-a-glance view of the number of errors and status of backend hosts.
Identify load balancers with the most number of unhealthy hosts.
Monitor trends around active connections, bytes processed, and reset packets to ensure load balancers are operating as expected.

Active and New Flows

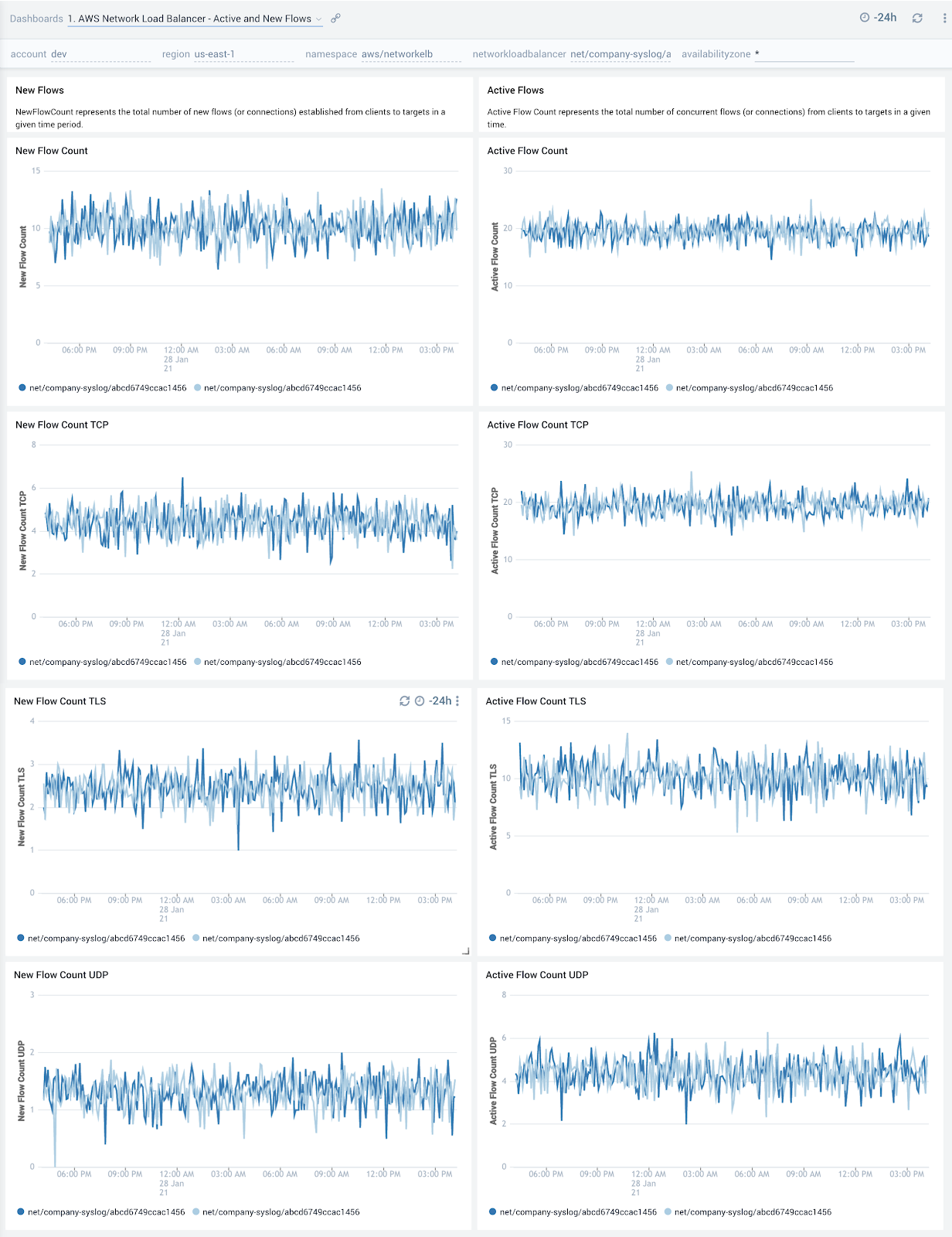

The AWS Network Load Balancer - Active and New Flows dashboard provides detailed insights for new flows, and active flows for TCP, TLS, and UDP traffic. Use this dashboard to to monitor trends around active and new flows (connections) to make sure they line up with expectations, then use this information to scale up/scale down backend hosts.

Host Health Status

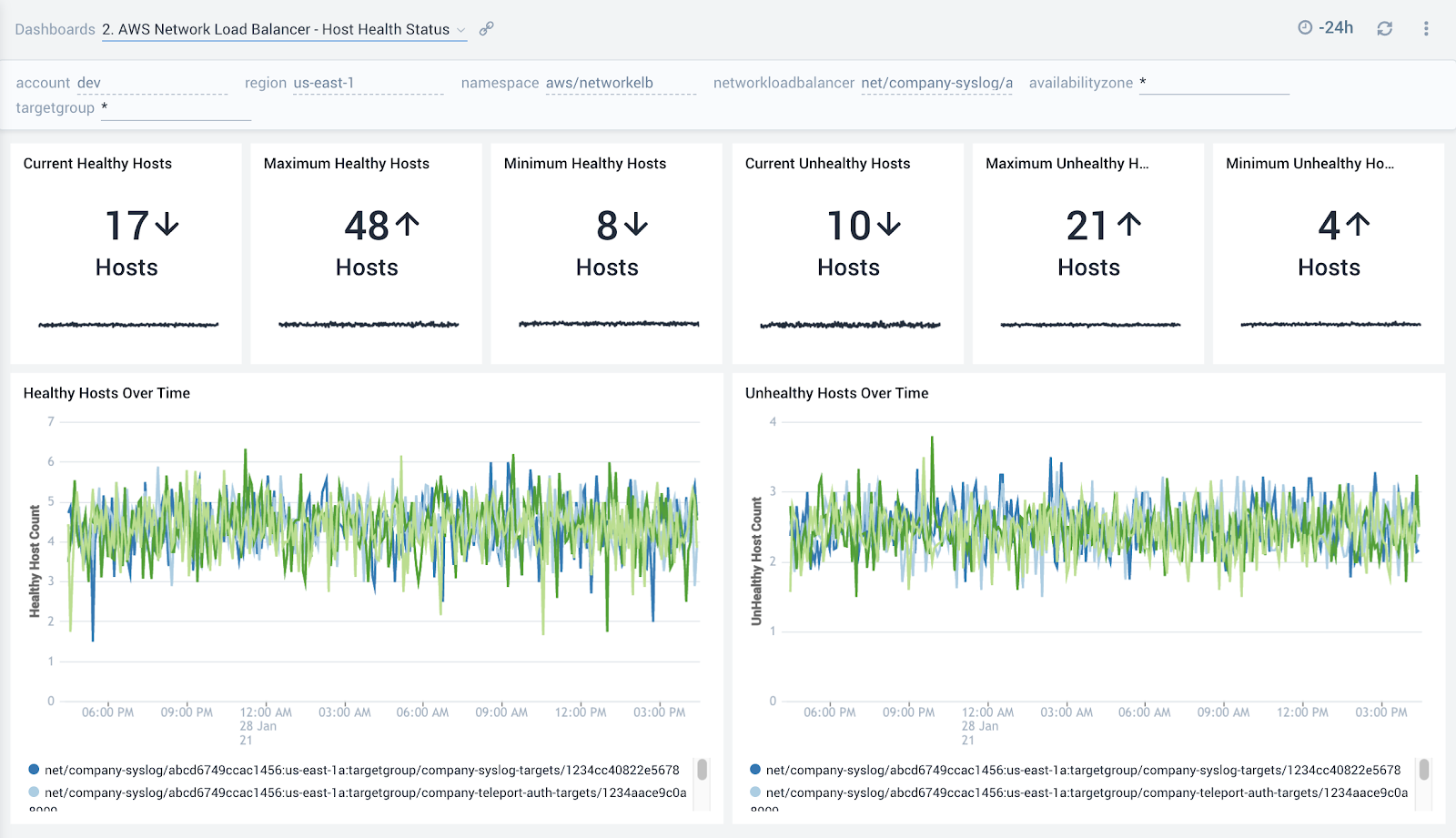

The AWS Network Load Balancer - Host Health Status dashboard provides detailed insights into the number of healthy and unhealthy hosts.

Use this dashboard to:

Get a quick overview of the number of healthy and unhealthy hosts.
Monitor trends around the number of unhealthy hosts to spot potential service disruptions that could warrant deeper investigation.

AWS Network Load Balancer - Host Health Status

Errors

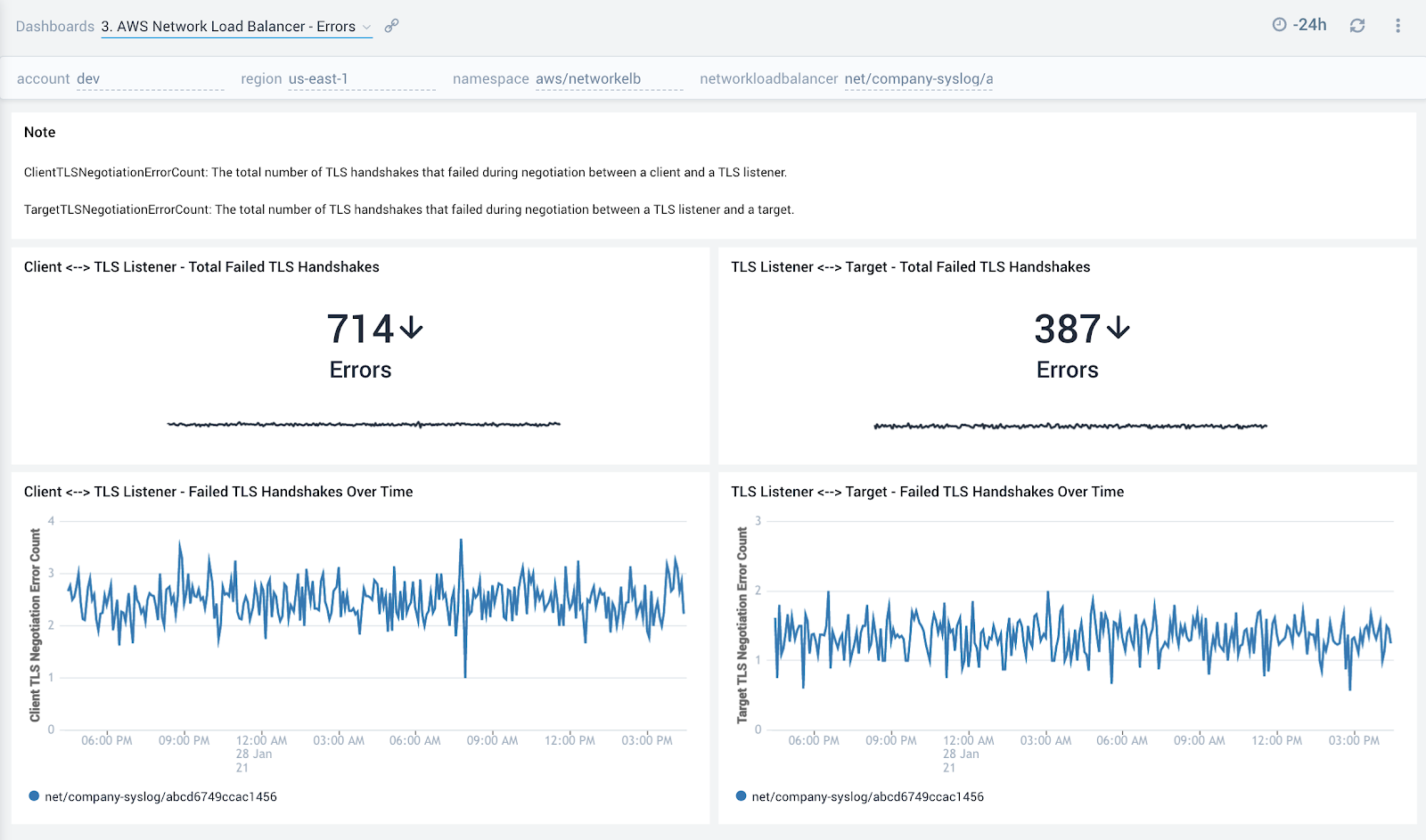

The AWS Network Load Balancer - Errors dashboard provides detailed insights into the errors reported by the network load balancer. This dashboard shows information for the total number of TLS handshakes that failed during negotiation between a client and a TLS listener, and the total number of TLS handshakes that failed during negotiation between a TLS listener and a target.

Use this dashboard to:

Monitor TLS handshake errors during negotiation between a client and a TLS listener, which could happen if clients are sending an incorrect cipher or are using incorrect protocols not matching the one specified in the security policy. It’s recommended to use the most recent AWS CLI client version.
Monitor TLS handshake errors during negotiation between a TLS listener and a target. Possible causes for this error include a mismatch of ciphers or protocols.

Reset (RST) Packets

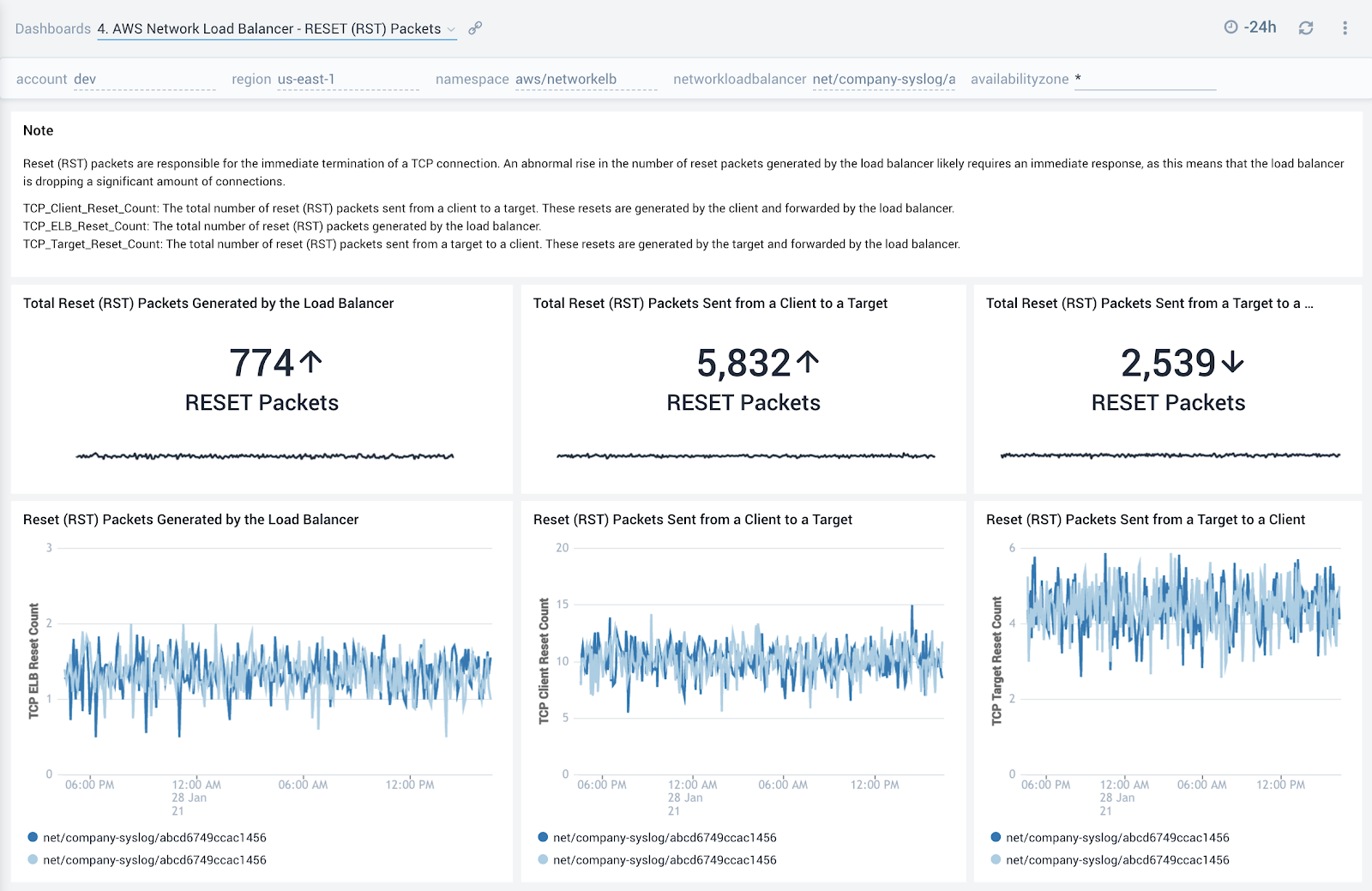

The AWS Network Load Balancer - Reset (RST) Packets dashboard provides detailed insights into the number reset (RST) packets received by the network load balancer. The dashboard shows the information for the total number of reset (RST) packets sent from a client to a target , the total number of reset (RST) packets generated by the load balancer, and the total number of reset (RST) packets sent from a target to a client.

Use this dashboard to monitor the number of RST packets. A high number of reset packets could indicate connections are getting dropped and could mean a disruption in service.

Processed Bytes

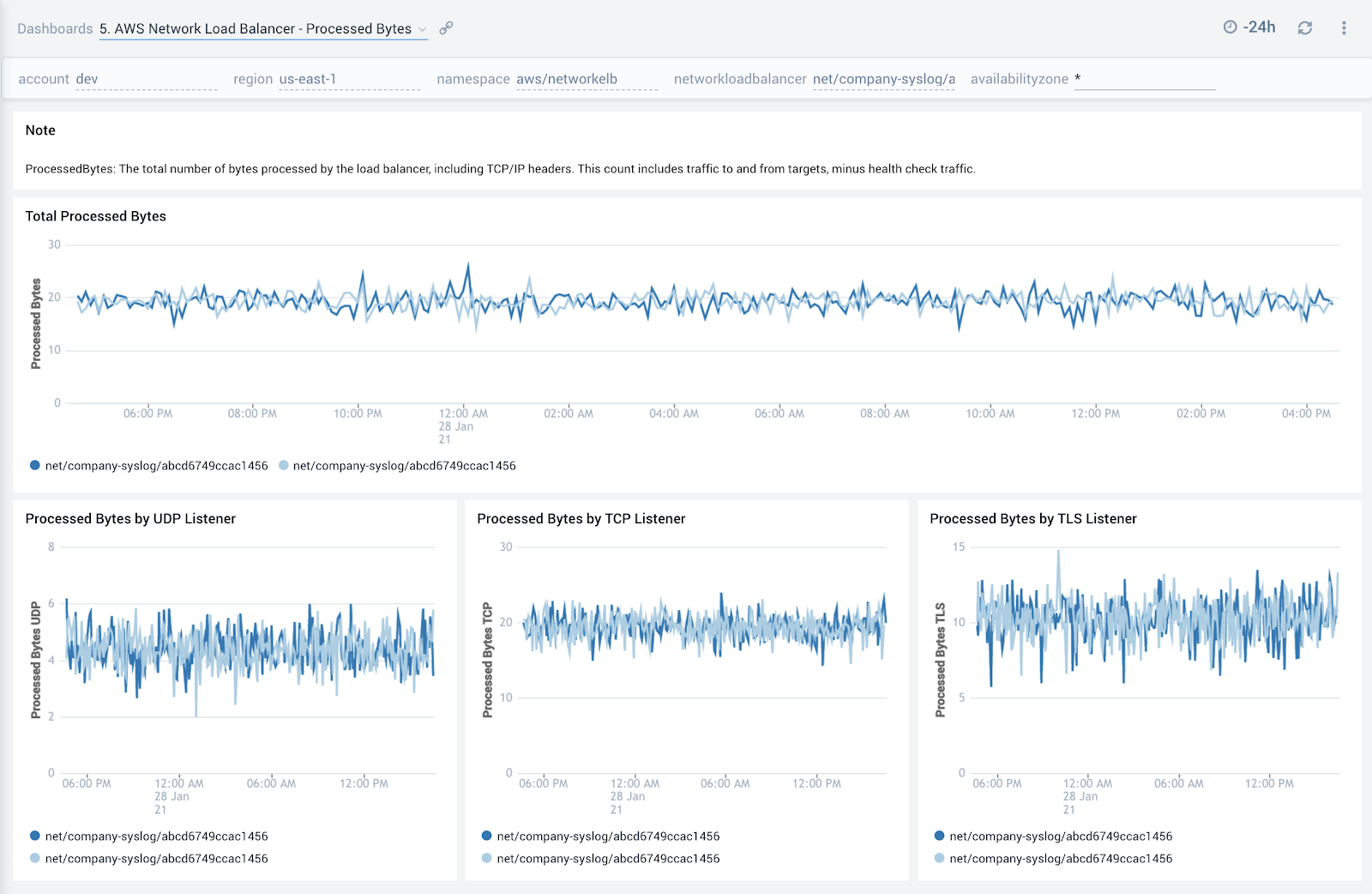

The AWS Network Load Balancer - Processed Bytes dashboard provides detailed insights into the amount of bytes processed by the load balancer for total, UDP, TCP and TLS traffic. Use this dashboard to monitor trends around processed bytes to make sure they line up with expectations and then use that information to scale up or scale down backend hosts.

Consumed LCUs

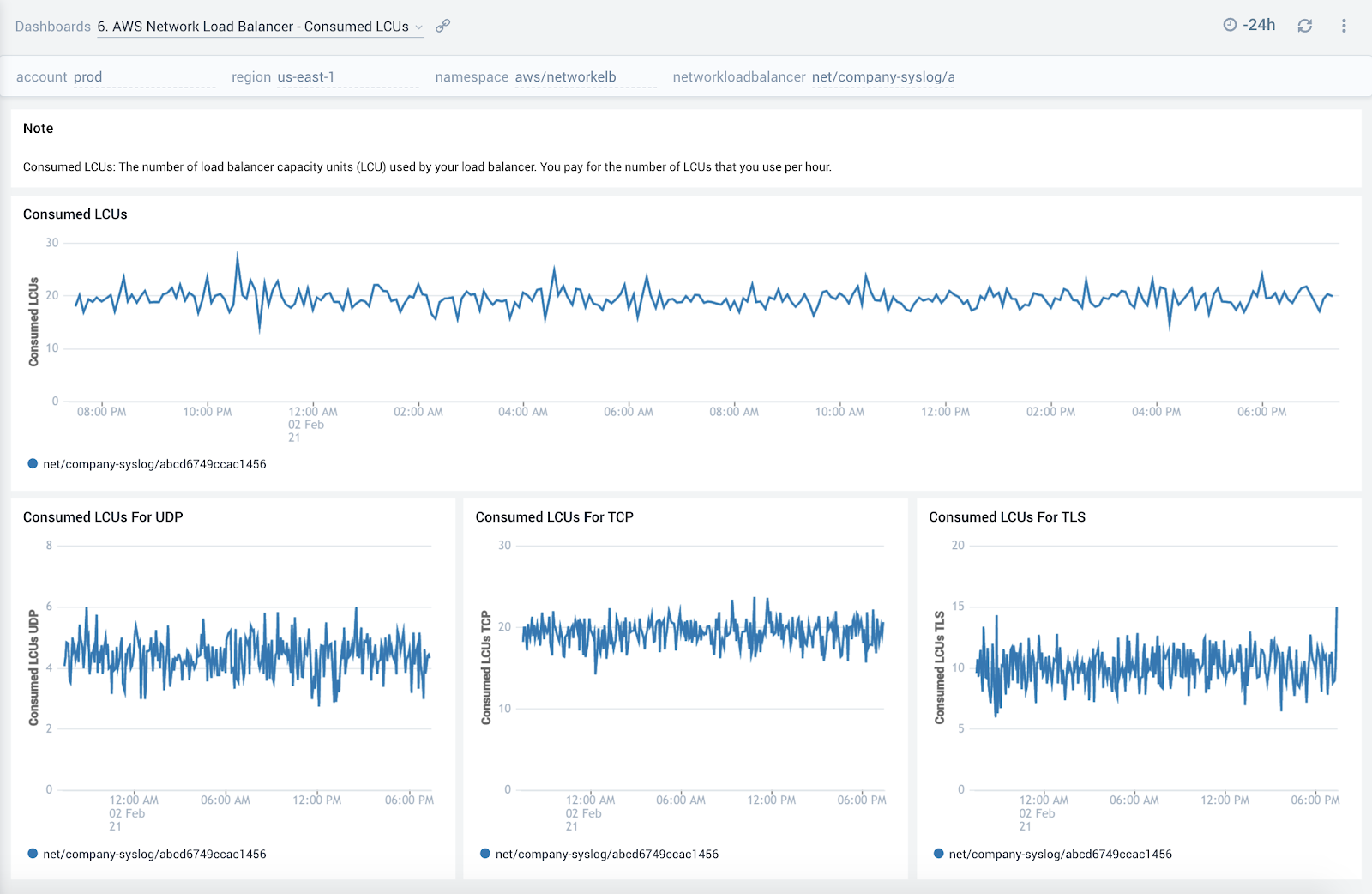

The AWS Network Load Balancer - Consumed LCUs dashboard shows you the total number of load balancer capacity units (LCU) used by your load balancer by network protocol. Use this dashboard to optimize load balancer costs by monitoring trends around the number of load balancer capacity units (LCU) used by network protocol.

note

You pay for the number of LCUs that you use per hour.

AWS Network Load Balancer - Consumed LCUs

CloudTrail Audit

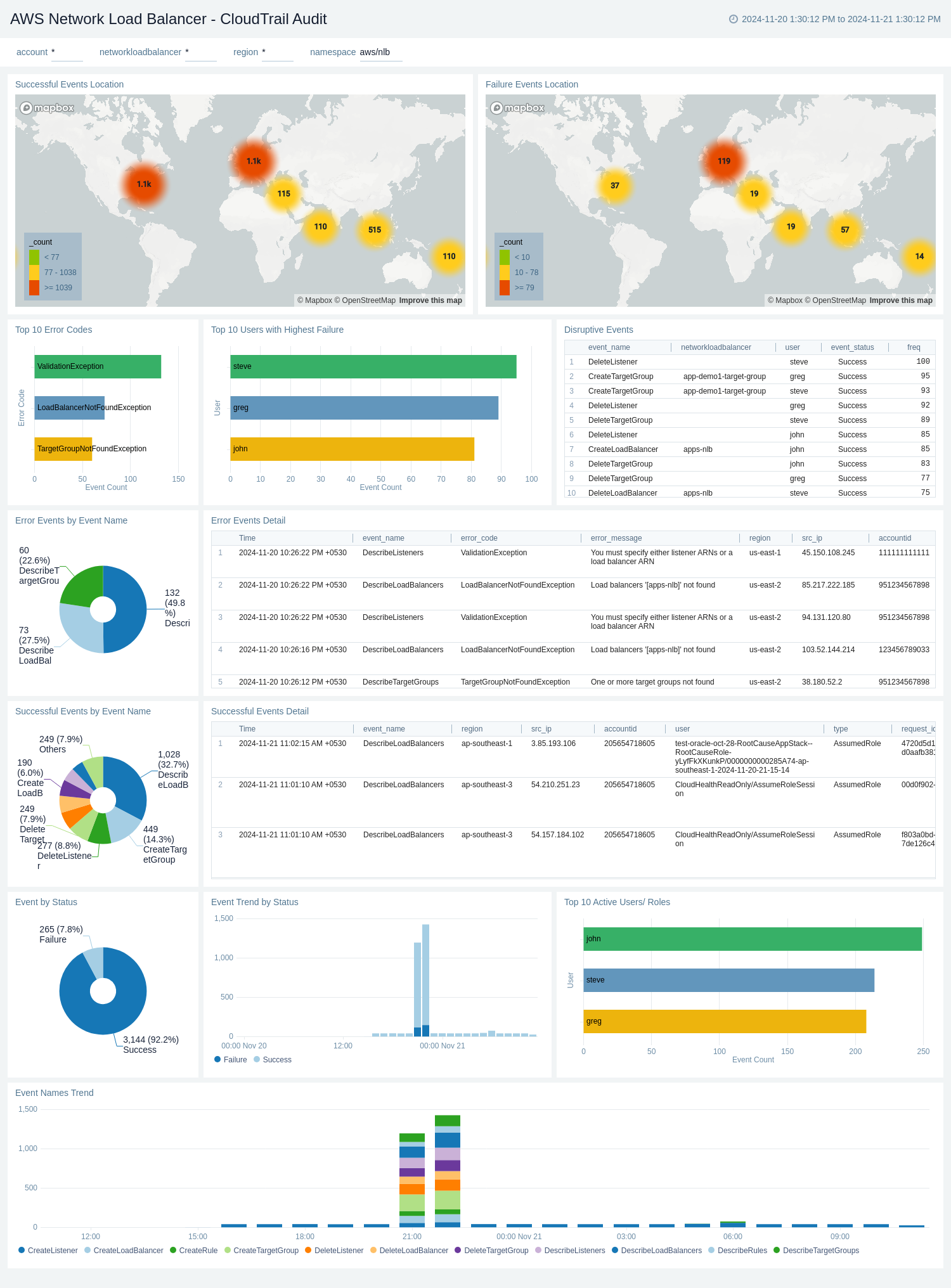

The AWS Network Load Balancer - CloudTrail Audit dashboard provides a comprehensive overview of AWS Network Load Balancer activities through CloudTrail audit logs. It visualizes successful and failed events globally, event trends, error details, and user activities, offering insights into load balancer performance, security, and usage patterns.

Use this dashboard to:

Monitor the geographical distribution of successful and failed load balancer events, allowing for quick identification of regions with high activity or potential issues.
Track the overall success rate of load balancer events and analyze trends over time, helping to identify any sudden changes or patterns in performance.
Investigate specific error events, including their details, frequency, and associated users, enabling faster troubleshooting and resolution of issues.
Identify the most common error types and the users experiencing highest failure rates, facilitating targeted improvements and user support.

AWS Network Load Balancer - CloudTrail Audit

Create monitors for AWS Network Load Balancer app

From your App Catalog:

From the Sumo Logic navigation, select App Catalog.
In the Search Apps field, search for and then select your app.
Make sure the app is installed.
Navigate to What's Included tab and scroll down to the Monitors section.
Click Create next to the pre-configured monitors. In the create monitors window, adjust the trigger conditions and notifications settings based on your requirements.
Scroll down to Monitor Details.
Under Location click on New Folder.
note
By default, monitor will be saved in the root folder. So to make the maintenance easier, create a new folder in the location of your choice.
Enter Folder Name. Folder Description is optional.
tip
Using app version in the folder name will be helpful to determine the versioning for future updates.
Click Create. Once the folder is created, click on Save.
