Sumo Logic Data Volume App

The Data Volume App provides you with a summary and detailed views of your account's data usage volume by data type, tier, category, collector, source name, and hosts via predefined searches and dashboards.

Installing the Data Volume app

Prerequisite

Enable the Data Volume Index (sumologic_volume) prior to installation. See Data Volume Index for instructions.

To install the app:

1. Select App Catalog.
2. In the Search Apps field, search for and then select your app.
3. Optionally, you can scroll down to preview the dashboards included with the app. Then, click Install App (sometimes this button says Add Integration).
4. Click Next.
5. Look for the dialog confirming that your app was installed successfully.


Once an app is installed, it will appear in your Personal folder or the folder that you specified. From here, you can share it with other users in your organization. Dashboard panels will automatically start to fill with data matching the time range query received since you created the panel. Results won't be available immediately, but within about 20 minutes, you'll see completed graphs and maps.

Viewing Data Volume Dashboards

All dashboards have a set of filters that you can apply to the entire dashboard. Use these filters to drill down and examine the data to a granular level.

• You can change the time range for a dashboard or panel by selecting a predefined interval from a drop-down list, choosing a recently used time range, or specifying custom dates and times. Learn more.
• You can use template variables to drill down and examine the data on a granular level. For more information, see Filtering Dashboards with Template Variables.
• Most Next-Gen apps allow you to provide the scope at the installation time and are comprised of a key (_sourceCategory by default) and a default value for this key. Based on your input, the app dashboards will be parameterized with a dashboard variable, allowing you to change the dataset queried by all panels. This eliminates the need to create multiple copies of the same dashboard with different queries.

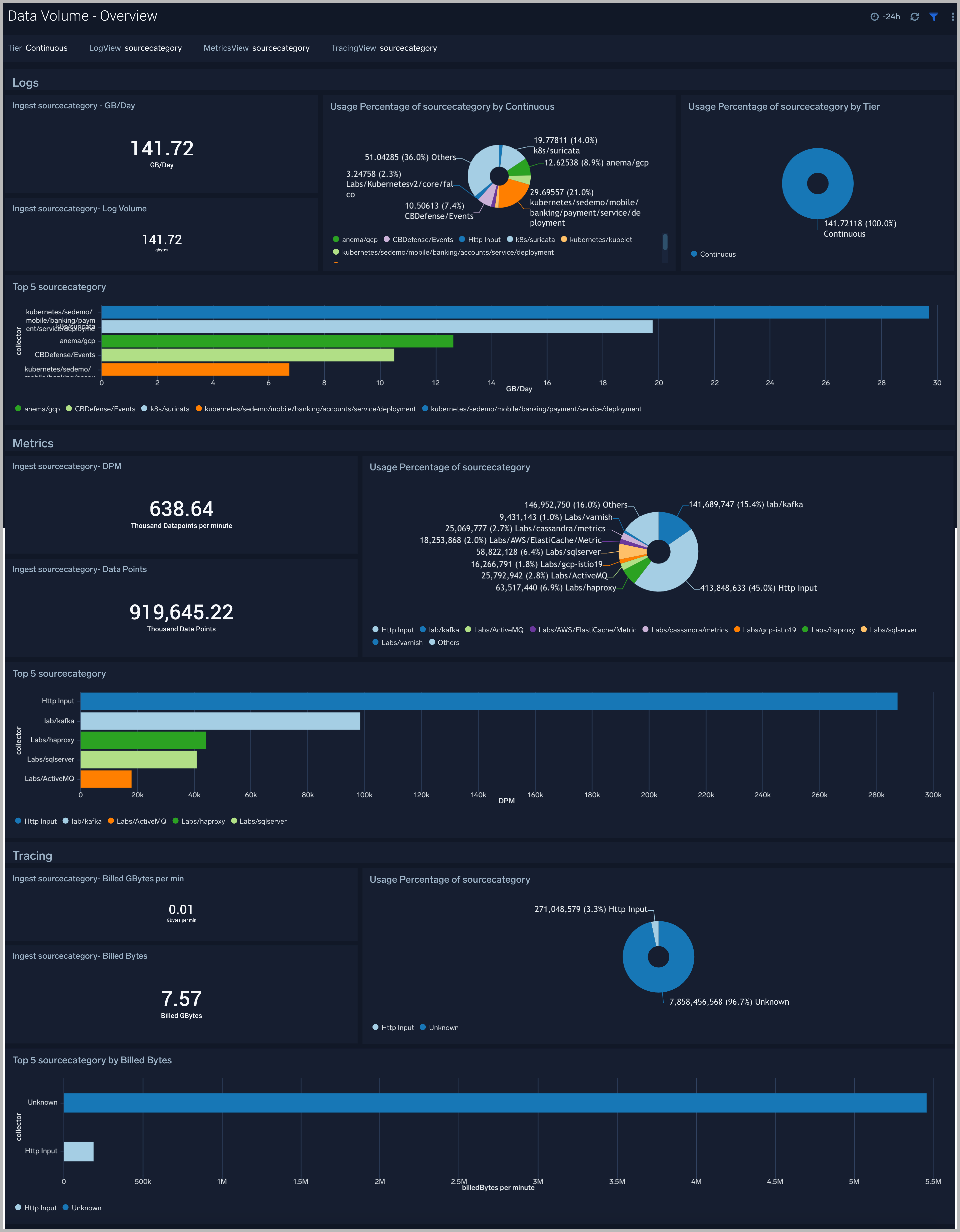

Overview

The Data Volume - Overview dashboard helps you understand your ingest in terms of Logs (by Tiers), Metrics, and Tracing capabilities.

Use this dashboard to:

• Identify the top sources, collectors, or hosts by ingesting data volume across logs, metrics, and traces

Logs

The largest data ingest typically comes from log volumes. The Data Volume - Logs dashboard allows you to view your log ingest volume by tier by ingesting spikes, outliers, and quota.

Use this dashboard to:

• Determine the log ingest volume and trends in GB across various tiers.
• Identify spikes where current hour ingestion is above 50% from the last hour. Identify outliers and forecast your data ingestion.
• Determine the log data for default index and top non-default indexes.
• Compare current ingestion to capacity and review any overages. You must configure the “Daily_Log_Ingest_Capacity” variable based on your Account Subscription. If you have Credit based plan, please check with your account executive to determine these values for your account. Otherwise, see the Account Overview page to get your capacity values.

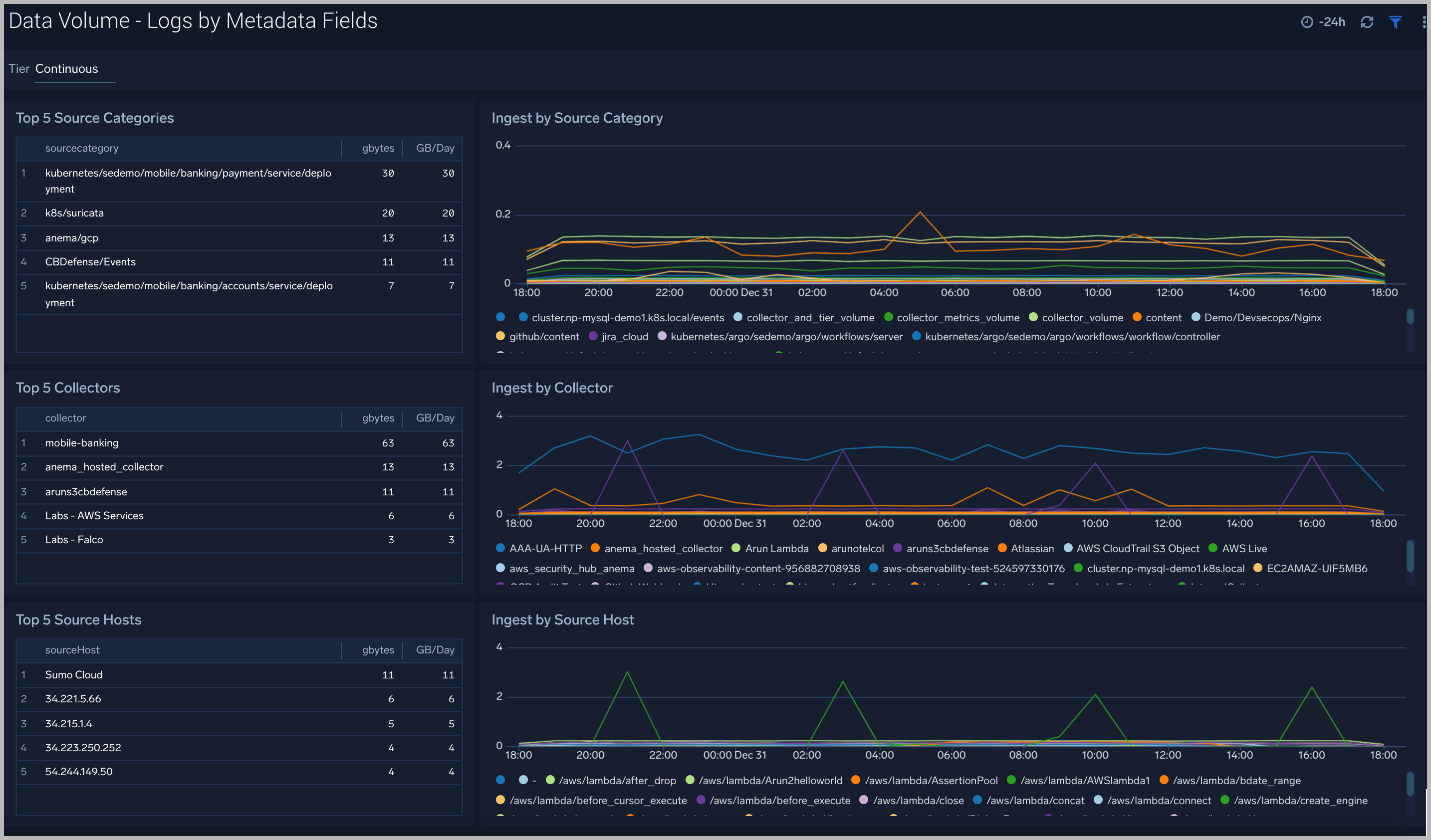

Data Volume Logs by Metadata Fields

The Data Volume - Logs by Metadata Fields dashboard allows you to view log ingest volume by tier, source categories, collectors, and hosts.

Use this dashboard to:

• Identify the top 5 sources categories, source hosts, and collectors by ingest volume
• Examine ingestion trends over time

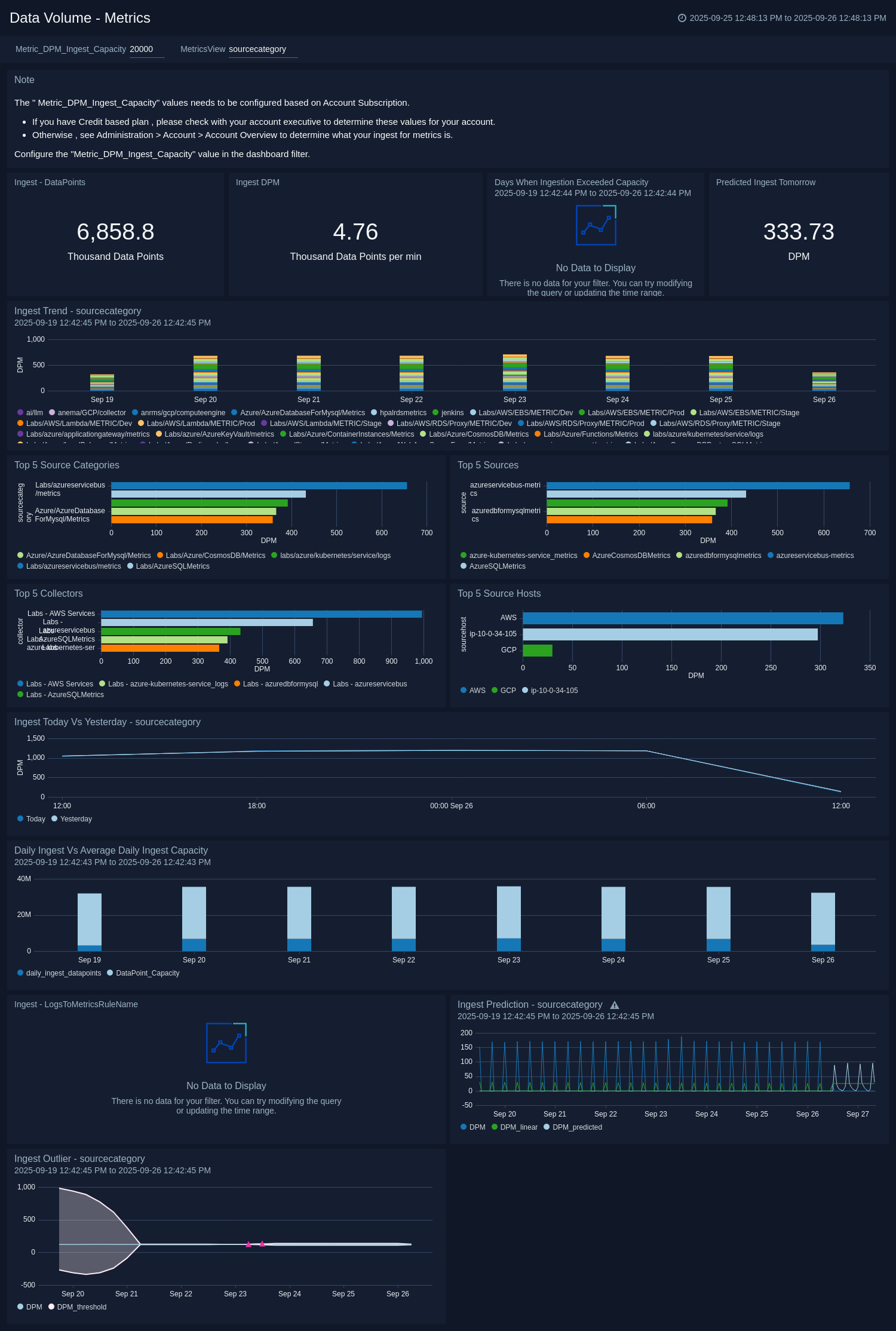

Metrics

The Data Volume - Metrics dashboard allows you to view your metrics ingested, identifies ingest outliers/spikes, and helps predict what ingestion is going to be.

Use this dashboard to:

• Determine the ingested DPM by various dimensions.
• Examine trends over time.
• Identify the spikes where current hour ingestion is above 50% from the last hour.
• Identify ingestion outliers and forecast data ingestion, analyze the comparison of your current ingestion to your capacity, and review any overages. You must configure the “Metric_DPM_Ingest_Capacity” variable that needs to be configured based on Account Subscription. If you have a Credit-based plan, please check with your account executive to determine these values for your account. Otherwise, see the Account Overview page to see your Capacity Values.

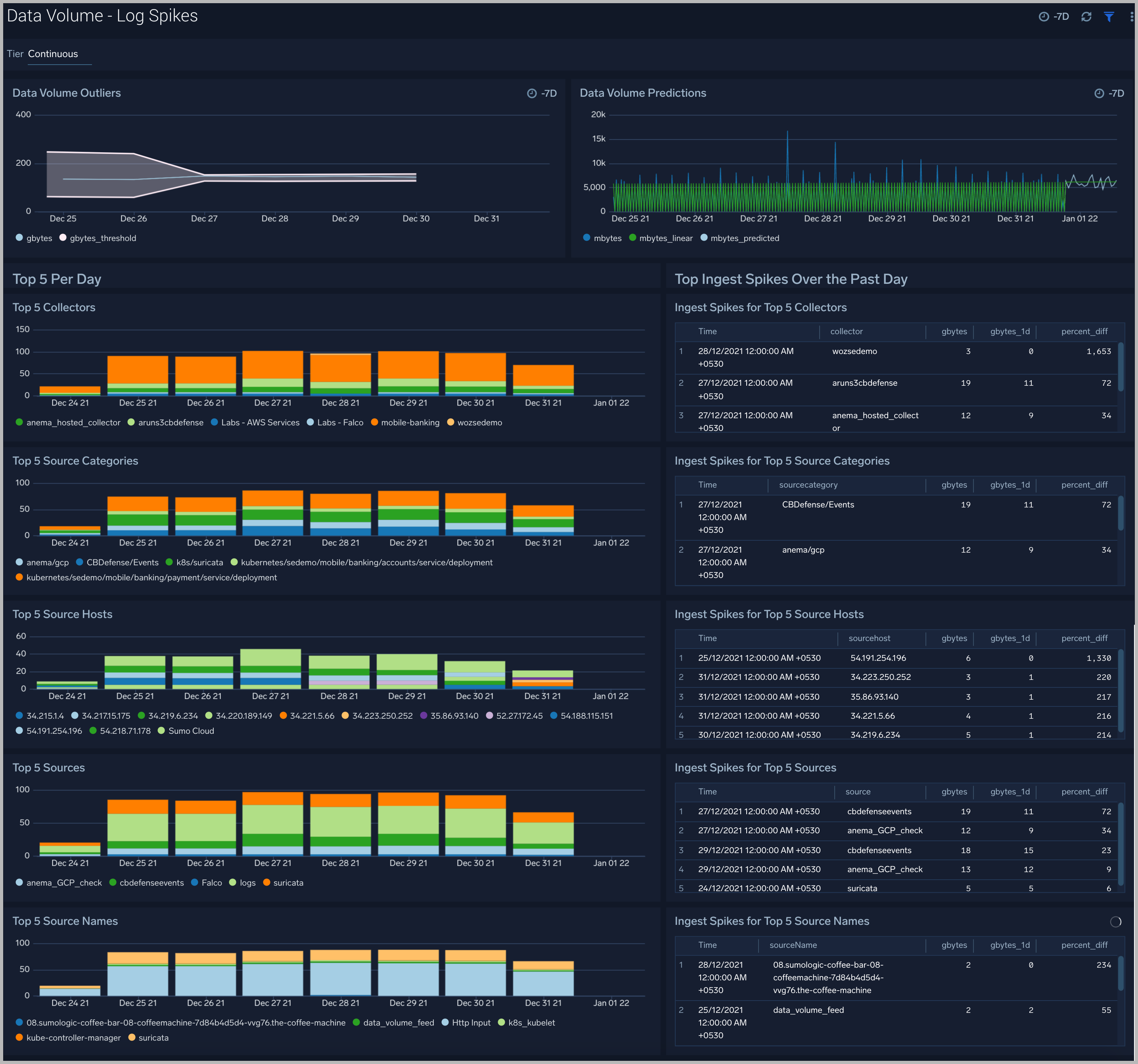

Log Spikes

The Data Volume - Log Spikes Dashboard helps you quickly identify significant increases in data ingested. Review details of your data ingested for logs.

Use this dashboard to:

• Identify ingest outliers
• Determine the spikes for top sources compared with the previous day

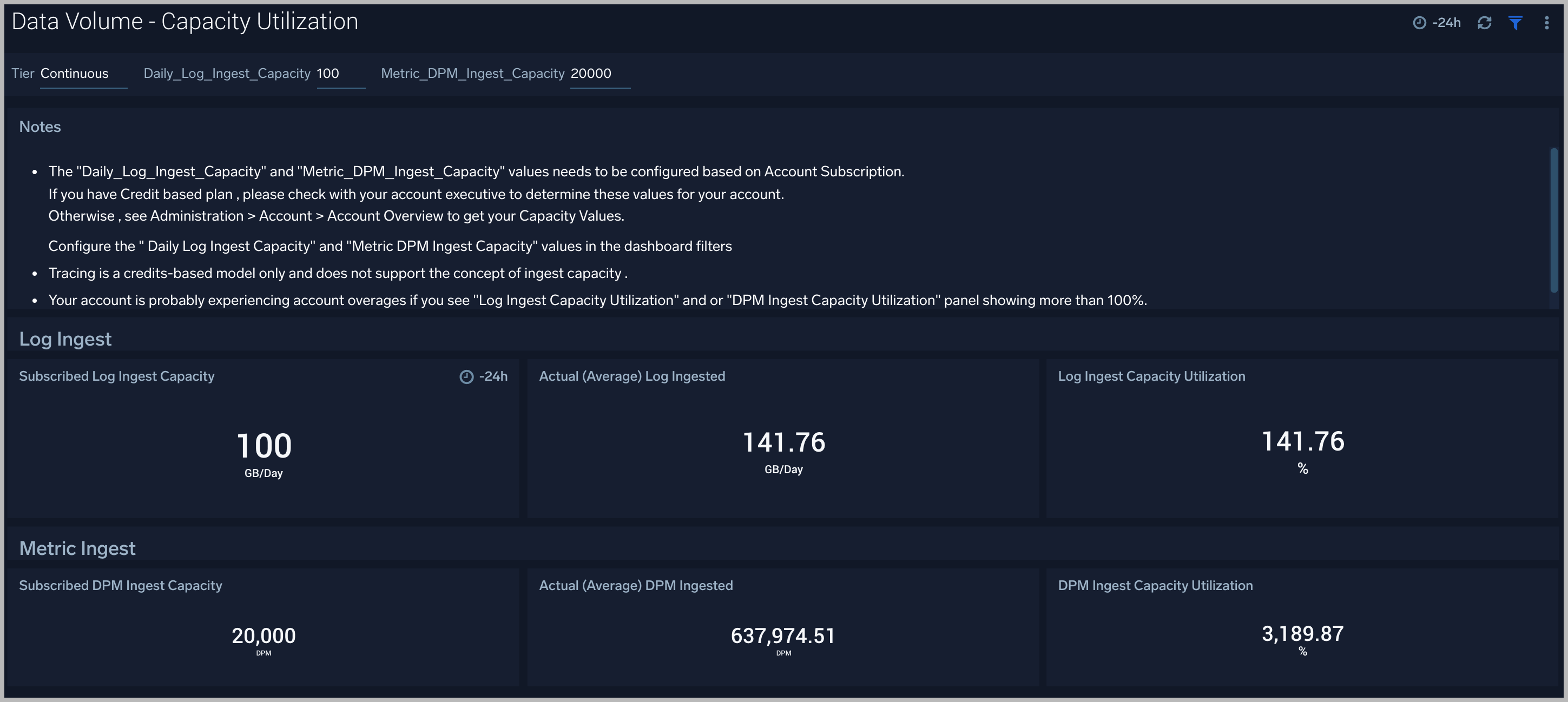

Capacity Utilization

The Data Volume - Capacity Utilization dashboard provides views of subscribed, actual, and percentage capacity utilization for logs and metrics.

Use this dashboard to:

• Identify the log and metrics ingestion capacity of your subscription. You must configure the "Daily_Log_Ingest_Capacity" and “Metric_DPM_Ingest_Capacity” variables based on your plan with Sumo Logic. If you have a Credit-based plan, please check with your account executive to determine these values for your account. Otherwise, see the Account Overview page to view the log ingest capacity value and metric DPM ingest capacity value.
• Identify the average ingestion and subscribed ingestion capacity by percentage for logs and metrics.

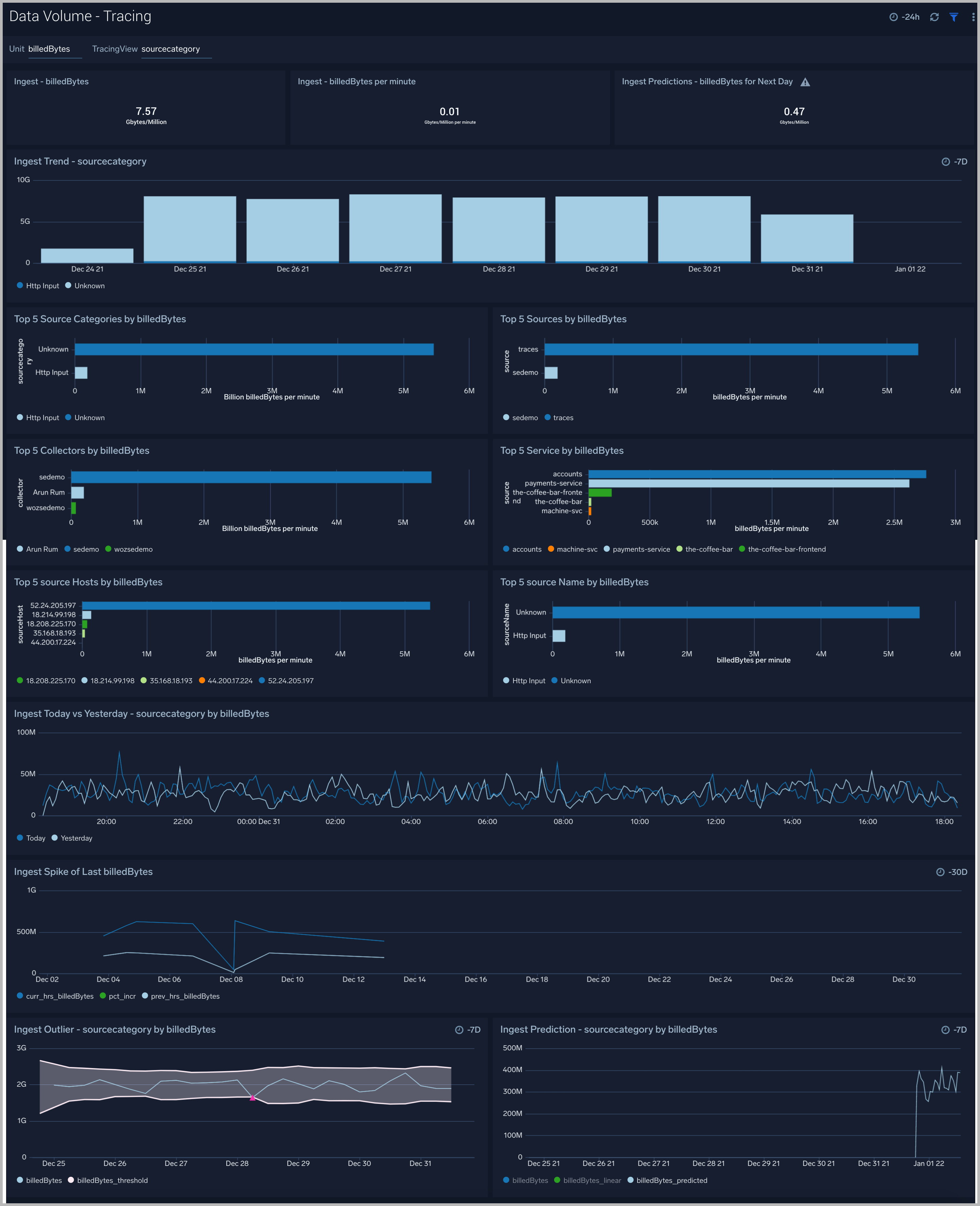

Tracing

The Data Volume - Tracing dashboard provides views of your Tracing data ingest by billed bytes and span counts per minute.

Use this dashboard to:

• Determine the ingested billedBytes/spansCount for tracing and examine trends over time.
• Identify spikes in ingestion, where ingestion for the current hour is above by 50% from the last hour.
• Identify the outliers (and forecast your data ingestion).
• Identify the top 5 source categories, source hosts, sources, and collectors by span count and billed bytes.

Create monitors for the Sumo Logic Data Volume app

From your App Catalog:

1. From the Sumo Logic navigation, select App Catalog.
2. In the Search Apps field, search for and then select your app.
3. Make sure the app is installed.
4. Navigate to What's Included tab and scroll down to the Monitors section.
5. Click Create next to the pre-configured monitors. In the create monitors window, adjust the trigger conditions and notifications settings based on your requirements.
6. Scroll down to Monitor Details.
7. Under Location click on New Folder.
   note

   By default, monitor will be saved in the root folder. So to make the maintenance easier, create a new folder in the location of your choice.

8. Enter Folder Name. Folder Description is optional.
   tip

   Using app version in the folder name will be helpful to determine the versioning for future updates.

9. Click Create. Once the folder is created, click on Save.

Data Volume app alerts

Name	Description	Alert Condition	Recover Condition
Data Volume - Daily plan limit alert	This alert is generated when the daily account log ingest for the previous day is greater than the defined threshold.	Count > 100	Count < = 100
Data Volume - Daily plan limit alert by collector	This alert is triggered if the account log ingestion for any collector on the previous day exceeds the configured threshold.	Count > 5	Count < = 5
Data Volume - Data not sent alert	This alert is triggered when a collector has not sent any data for longer than the configured threshold (60 minutes by default).	Count > 60	Count < = 60
Data Volume - Monthly plan limit alert	This alert is generated when total log ingest for the current billing period reaches 85% or more (configurable). Ensure the query is updated with daily_gb_limit (GB/day) and billing_start / billing_end (day of month) before enabling.	Count > 85	Count < = 85
Data Volume - Usage spike alert	This alert is generated when the current hour’s ingestion (GB) for a source category exceeds its highest hourly volume from the past four weeks by the set threshold percentage value.	Count > 50	Count < = 50

Upgrade/Downgrade the Data Volume app (Optional)

To update the app, do the following:

note

Next-Gen App: To install or update the app, you must be an account administrator or a user with Manage Apps, Manage Monitors, Manage Fields, Manage Metric Rules, and Manage Collectors capabilities depending upon the different content types part of the app.

1. Select App Catalog.
2. In the Search Apps field, search for and then select your app.
   Optionally, you can identify apps that can be upgraded in the Upgrade available section.
3. To upgrade the app, select Upgrade from the Manage dropdown.
   1. If the upgrade does not have any configuration or property changes, you will be redirected to the Preview & Done section.
   2. If the upgrade has any configuration or property changes, you will be redirected to the Setup Data page.
   3. In the Configure section of your respective app, complete the following fields.
      1. Field Name. If you already have collectors and sources set up, select the configured metadata field name (eg _sourcecategory) or specify other custom metadata (eg: _collector) along with its metadata Field Value.
   4. Click Next. You will be redirected to the Preview & Done section.

Post-update

Your upgraded app will be installed in the Installed Apps folder and dashboard panels will start to fill automatically.

note

See our Release Notes changelog for new updates in the app.

To revert the app to a previous version, do the following:

1. Select App Catalog.
2. In the Search Apps field, search for and then select your app.
3. To version down the app, select Revert to < previous version of your app > from the Manage dropdown.

Uninstalling the Data Volume app (Optional)

To uninstall the app, do the following:

1. Select App Catalog.
2. In the 🔎 Search Apps field, run a search for your desired app, then select it.
3. Click Uninstall.
