Automation Bridge

You can only run custom actions or integrations outside of the Sumo Logic cloud in an "on-premise" environment. For on-premise environments, you need to install a bridge as described below.

Version

The current version of the Automation Bridge is 3.3.0.

warning

Versions 2.1.1 and earlier are obsolete, no longer supported, and no longer visible in the UI. Customers must upgrade to a supported version to ensure proper functionality and continued support.

Requirements

Hardware requirements

• OS:
  • Ubuntu 18.04, 20.04, or 24.04
  • CentOS 7 or 8
  • RedHat 8
• RAM: 8GB
• CPU: 4 Core
• DISK: 160GB
• Network card: 1

Network requirements

The Bridge has to be able to resolve DNS hostnames and needs to reach the below destinations

DESTINATION	PROTOCOL	PORT
sumo-logic-api-url	TCP	443
siem-cloud-url	TCP	443
926226587429.dkr.ecr.us-west-2.amazonaws.com	TCP	443
926226587429.dkr.ecr.us-east-1.amazonaws.com	TCP	443
926226587429.dkr.ecr.ap-southeast-2.amazonaws.com	TCP	443
926226587429.dkr.ecr.eu-central-1.amazonaws.com	TCP	443
926226587429.dkr.ecr.ap-south-1.amazonaws.com	TCP	443
926226587429.dkr.ecr.ap-northeast-1.amazonaws.com	TCP	443
926226587429.dkr.ecr.ca-central-1.amazonaws.com	TCP	443
926226587429.dkr.ecr.eu-west-1.amazonaws.com	TCP	443
index.docker.io*	TCP	443
registry-1.docker.io*	TCP	443
auth.docker.io*	TCP	443
production.cloudflare.docker.com*	TCP	443
long-endpoint1-events.sumologic.net	TCP	443

* Needed only to connect to Docker hub.

Install Docker

1. Install Docker-CE following the installation instructions in Docker Docs. Install at least version 20.10 (do not use nightly build).
2. As soon as the Docker daemon is installed, start it with:

   systemctl start docker

3. Enable it on boot:

   systemctl enable docker

Using a proxy

1. If Docker has to use a proxy to pull images, follow the below instructions:

   mkdir -p /etc/systemd/system/docker.service.d

2. Create a file named /etc/systemd/system/docker.service.d/http-proxy.conf, and add:

   [Service]
   Environment="HTTP_PROXY=http://proxy.example.com:8080"
   Environment="HTTPS_PROXY=http://proxy.example.com:8080"

3. Reload the systemd daemon with:

   systemctl daemon-reload

4. And restart Docker service with:

   systemctl restart docker

Get installation token

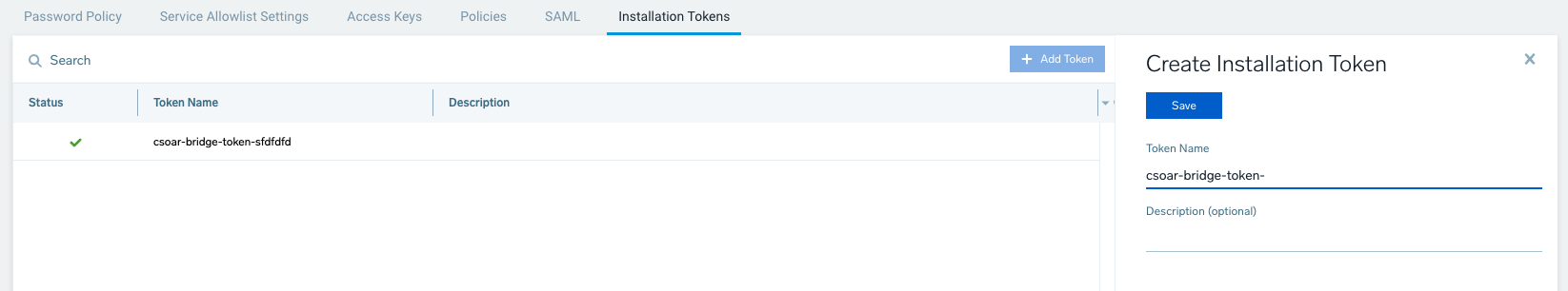

Sign in to Sumo Logic and create a new installation token with name prefix csoar-bridge-token.

info

You must prefix your installation token with csoar-bridge-token in order for the Automation Bridge to connect to your CloudSOAR instance.

Automation bridge installation

Ubuntu

1. New UI. In the main Sumo Logic menu, select Automation > Bridge. You can also click the Go To... menu at the top of the screen and select Bridge.
   Classic UI. In the main Sumo Logic menu, select Automation and then click the ? icon in the top right.
2. In the Automation Bridge Manual box, click UBUNTU.
3. Click Download to download the automation-bridge-X.X.deb file.
4. Copy the file to the bridge virtual machine.
5. To install the package run from ssh:

   sudo dpkg -i automation-bridge-X.X.deb

CentOS/RedHat

1. New UI. In the main Sumo Logic menu, select Automation > Bridge. You can also click the Go To... menu at the top of the screen and select Bridge.
   Classic UI.. In the main Sumo Logic menu, select Automation and then click the ? icon in the top right.
2. In the Automation Bridge Manual box, click CENTOS/REDHAT.
3. Click Download to download the automation-bridge-X.X.rpm file.
4. Copy the file to the bridge virtual machine.
5. To install the package run from ssh:

   sudo yum install automation-bridge-X.X.rpm

Installation configuration

1. Verify that the prefix name of the generated token respects the requirements (see Get installation token).
2. Edit the file /opt/automation-bridge/etc/user-configuration.conf and set the below mandatory parameters:
   • SOAR_URL
   • SOAR_TOKEN
3. To determine which is the correct SOAR_URL, see Sumo Logic Endpoints by Deployment and Firewall Security and get the URL under the API Endpoint column. For example: https://api.eu.sumologic.com/api/

And you can set this optional parameter (do not include spaces and must be less than 20 characters): ALIAS

An example of a configuration file would be:

{
  "SOAR_URL":"API_ENDPOINT_FROM_FIREWALL_DOC_FOR_YOUR_REGION",
  "SOAR_TOKEN":"TOKEN_FROM_ADMINISTRATION_-->_SECURITY_-->_INSTALLATION TOKEN",
  "SIEM_URL":"The HTTPS Source endpoint URL from a Hosted Sumo Logic Collector",
  "ALIAS":"YOUR_ALIAS_NO_SPACES_LESS_THAN_20_CHARACTERS"
}

To create a Hosted Sumo Logic Collector, see Hosted Collectors. To add an HTTPS Source to a Hosted Collector, see HTTP Logs and Metrics Source. By adding this endpoint to SIEM_URL, this will enable the automation bridge logs to be forwarded to Sumo Logic Log Analytics.

Bridge ALIAS

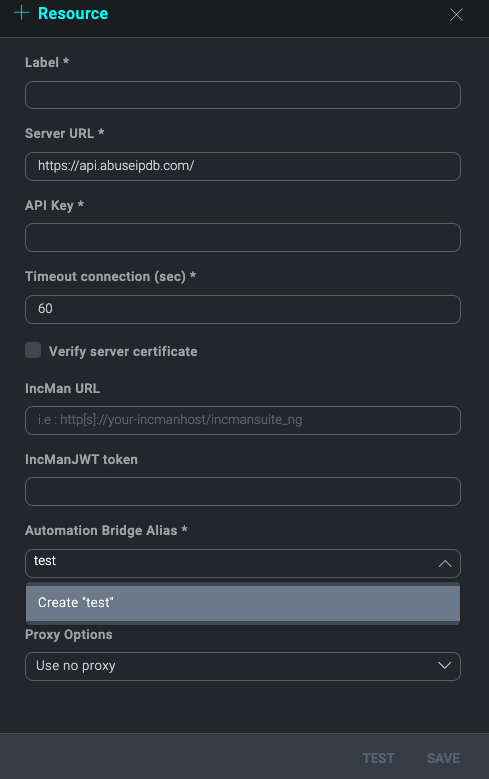

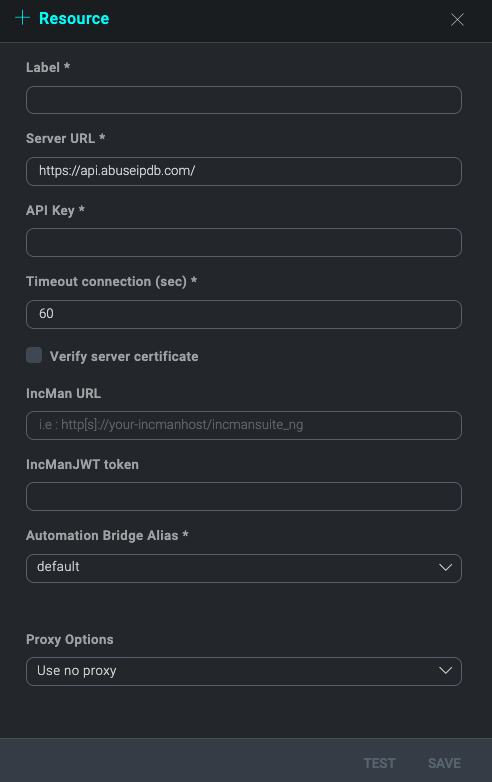

With bridge ALIAS, it is possible to distinguish which integration resources will be executed with this automation bridge. When a new integration resource is created or edited it is possible to select the default ALIAS or to create a new one. So every automatic action configured to use this resource will be performed with the Bridge that has the same ALIAS.

Automation bridge update

For Ubuntu and CentOS/RedHat, the update process works as the installation process. Follow the same steps described in Automation bridge installation above.

note

If you are not using the SIEM:

1. Set SIEM_URL to NONE.
2. Restart the service with:

   systemctl restart automation-bridge

3. If you need to allow automation-bridge communication through a proxy, edit the file /etc/opt/automation-bridge/automation-bridge.conf and set the correct value. Below is an example:

   HTTP_PROXY="http://proxy.example.com:8080\"
   HTTPS_PROXY="http://proxy.example.com:8080\"

4. Restart the service with:

   systemctl restart automation-bridge

Configuring the automation bridge for high availability

You may elect to deploy and register multiple bridges to your tenant for high availability. To cluster automation bridges together logically within the Automation Service and ensure high availability, you must set the same ALIAS for each bridge within the cluster in each respective user-configuration.conf file upon installation.

When multiple bridges are registered with the same ALIAS, they will appear as active. If one or more bridges within the cluster go offline, playbooks will execute via the active nodes utilizing the same ALIAS. So long as there is parity between the nodes and there is at least one active node registered, there will be no disruption in playbook execution.

It is important to note that integration actions within the playbook must have the appropriate bridge ALIAS assigned within the resource configuration and that connectivity can be established with the appropriate resources. Advanced playbooks may elect to utilize multiple bridge clusters leveraging multiple aliases.

Post-installation checks

To check if the bridge is running correctly, run the following command:

ps faux |grep automation-bridge

This is an example of running automation-bridge:

On the Bridge tab in the Automation Service UI, a list of live bridge agents will be displayed along with their status.

Configuring the automation bridge for CyberArk

If you are using CyberArk, you must add the following certificates provided by CyberArk to the /opt/automation-bridge/ directory:

• RootCA_new.crt
• client_new.crt
• client_new.pem

Configuring automation bridge with Podman

Enable Podman socket

1. Run the following commands:

   systemctl enable podman.socket && systemctl start podman.socket

2. Create a symbolic link:

   ln -s /run/podman/podman.sock /var/run/docker.sock

Change automation bridge configuration

Change the automation bridge configuration file /usr/lib/systemd/system/automation-bridge-worker@.service.

systemd

[Unit]
Description=Automation-bridge worker %i

[Service]
User=root
EnvironmentFile=/etc/opt/automation-bridge/automation-bridge.conf
ExecStart=/opt/automation-bridge/bin/automation-bridge -f /opt/automation-bridge/etc/user-configuration.conf -n %H-%i
ExecStop=/bin/kill -s TERM  $MAINPID
Restart=on-failure
TimeoutStartSec=10
RestartSec=10
##
NoNewPrivileges=yes
PrivateTmp=yes
PrivateDevices=yes

[Install]
WantedBy=multi-user.target

info

This is the current solution and it needs to run service as root.

Automation bridge for Docker

This repository provides Docker images to run the Sumo Logic automation bridge. The images contain an automation bridge able to connect to the Automation Service environment.

Use the Docker automation bridge image

There are images tagged latest and for specific versions to run the automation bridge.

When run, the automation bridge listens on the Docker Unix socket to be able to execute the integration or to run a standalone daemon.

The automation bridge needs to be able to communicate with the Docker API to work.

Prerequisites and configuration

Environment Variable	Description	Default
API_URL_HERE	To determine which is the correct SOAR_URL, see Sumo Logic Endpoints by Deployment and Firewall Security and get the URL under the API Endpoint column. For example: https://api.eu.sumologic.com/api/
SOAR_TOKEN_HERE	Sign in to Sumo Logic and create a new installation token with the name prefix csoar-bridge-token.
SIEM_URL_HERE	The HTTPS Source endpoint URL from a Hosted Sumo Logic Collector.	NONE
BRIDGE_ALIAS_HERE	Provide the alias name. With bridge ALIAS, it is possible to distinguish which integration resources will be executed with this automation bridge. When a new integration resource is created or edited, it is possible to select the default ALIAS or to create a new one. So every automatic action configured to use this resource will be performed with the bridge that has the same ALIAS.	NONE

Methodologies

The bridge can run with two methodologies.

With the Docker socket mounted as volume

(Recommended)

docker run -d \
-v /var/run/docker.sock:/var/run/docker.sock \
-e SOAR_URL=API_URL_HERE \
-e SOAR_TOKEN=SOAR_TOKEN_HERE \
-e SIEM_URL=SIEM_URL_HERE \
-e ALIAS=BRIDGE_ALIAS_HERE \
-e DOCKER_TLS_CERTDIR=/certs \
-v docker-certs-ca:/certs/ca -v docker-certs-client:/certs/client \
public.ecr.aws/u5z5f8z6/sumologic/csoar-automation-bridge:latest

In the DooD approach, you use the Docker daemon from the host system to interact with containers. Containers themselves do not have their own Docker runtime; they communicate with the host's Docker. This offers some distinct advantages, including simplicity in managing the containers and resource efficiency, as containers do not need to run their own Docker daemon.

This way, the main container will have access to the Docker socket and will, therefore, be able to start containers. The only difference is that instead of starting “child” containers, it will start “sibling” containers.

It's useful to sharing pulled image with all bridges running on host machine.

With privileged option

docker run -d \
--privileged \
-e SOAR_URL=API_URL_HERE \
-e SOAR_TOKEN=SOAR_TOKEN_HERE \
-e SIEM_URL=SIEM_URL_HERE \
-e ALIAS=BRIDGE_ALIAS_HERE \
-e DOCKER_TLS_CERTDIR=/certs \
-v docker-certs-ca:/certs/ca -v docker-certs-client:/certs/client \
public.ecr.aws/u5z5f8z6/sumologic/csoar-automation-bridge:latest

Privileged containers are special containers with elevated privileges and direct access to the host system. Unlike their non-privileged counterparts, which are isolated and restricted in their capabilities, privileged containers can perform tasks requiring higher-level access. They achieve this by interacting with the host kernel and accessing sensitive resources, including hardware devices and network interfaces.

One key difference between privileged and non-privileged containers is the level of isolation. Non-privileged containers are meticulously sandboxed and have limited access to the host system, thus providing an extra layer of security. Contrarily, privileged containers operate with fewer restrictions, enabling them to execute advanced operations beyond the reach of non-privileged containers.

Troubleshooting

The first step to troubleshooting any bridge-related issue is to access the bridge logs.

• If the bridge is running as a Docker container:

  1. List all bridge containers:

     docker ps -a | grep "automation-bridge*"

  2. Extract container ID of the bridge in contention and check logs for any error:

     docker logs CONTAINER_NAME_OR_ID | grep -i "error"

• If the bridge is running as a systemd service (deb/rpm package), check the logs for all bridge workers around the time the failing actions were triggered using journalctl with the --since flag.

  For example:

  journalctl -u 'automation-bridge-worker@*.service' --since "30 minutes ago" | grep -i "error"

In both the setups, check the Bridge tab in the Automation Service UI as well, to see if the action reports any errors or timeout details.

Common issues

• Bridge starts and shutsdown immediately

  • Installation token name does not respect the requirements mentioned in Get installation token.

    Check the logs and you should see logs lines similar to:

    time="2026-01-19T12:29:23Z" level=error msg="Error response from request getBridgeConf" error=401 fields.time="2026-01-19 12:29:23.933671925 +0000 UTC m=+2.250123502"
    time="2026-01-19T12:29:23Z" level=error msg="Error getting initial conf from cloud" error="Error getting configuration at startup: 401" fields.time="2026-01-19 12:29:23.933849675 +0000 UTC m=+2.250301252" workerIdentifier=worker@95138086f341

    Resolution:

    • Create a new token or update the existing token to meet the required format. Ensure the token prefix starts with: csoar-bridge-token-

  • Installation token has hit its limit and is now emitting 429 status code on starting a bridge

    Check the logs and you should see log lines similar to:

    time="2026-01-19T12:34:10Z" level=error msg="Error response from request getBridgeConf" error=429 fields.time="2026-01-19 12:34:10.887085335 +0000 UTC m=+1.143383376"
    time="2026-01-19T12:34:10Z" level=error msg="Error getting initial conf from cloud" error="Error getting configuration at startup: 429" fields.time="2026-01-19 12:34:10.887275793 +0000 UTC m=+1.143573835" workerIdentifier=worker@7b5d7449c289

    Resolution:

    • Consider upgrading bridge to version v3.2.2 and later.
    • Start the bridge using a new installation token.

• Bridge runs for a while and then goes offline

  This issue commonly arises when the installation token exceeds its permitted API call quota.

  When the limit is breached, the bridge responds with HTTP 429 (Too Many Requests) status codes. The bridge logs generally include messages similar to the example below:

  time="2026-01-14T08:53:04Z" level=error msg="Error sending request keepAlive"
  error="all retries failed for https://<SOAR_URL>/api/auth-gateway/csoar/bridge/keepAlive/⁠ with response:
  &{Status:429 Too Many Requests StatusCode:429 Proto:HTTP/2.0 ProtoMajor:2 ProtoMinor:0

  Resolution:

  • Ensure that the bridge is running the latest available version.
  • For bridge versions v3.2.2 and later, this issue should go away on its own after a while. The bridge will automatically try again after some time and will reconnect once the rate limits are cleared, which can be monitored in the Bridge tab of the Automation Service UI. The recovery duration depends on the number of bridges sharing the same token.
  • When multiple bridges are operating with the same token and self-healing is slow, a quick workaround is to stop a subset of the bridges and monitor the health of the remaining bridges until stability is restored.
